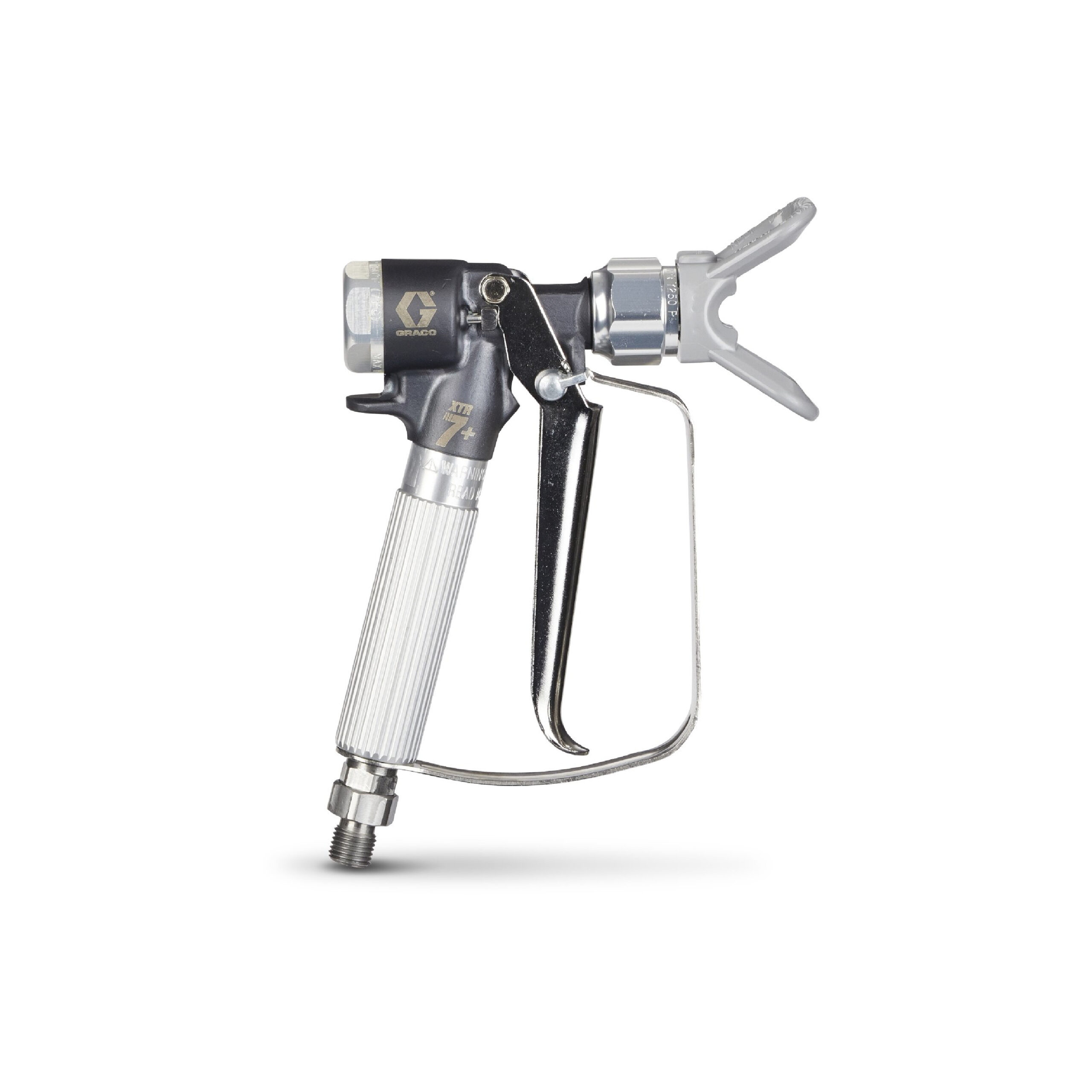

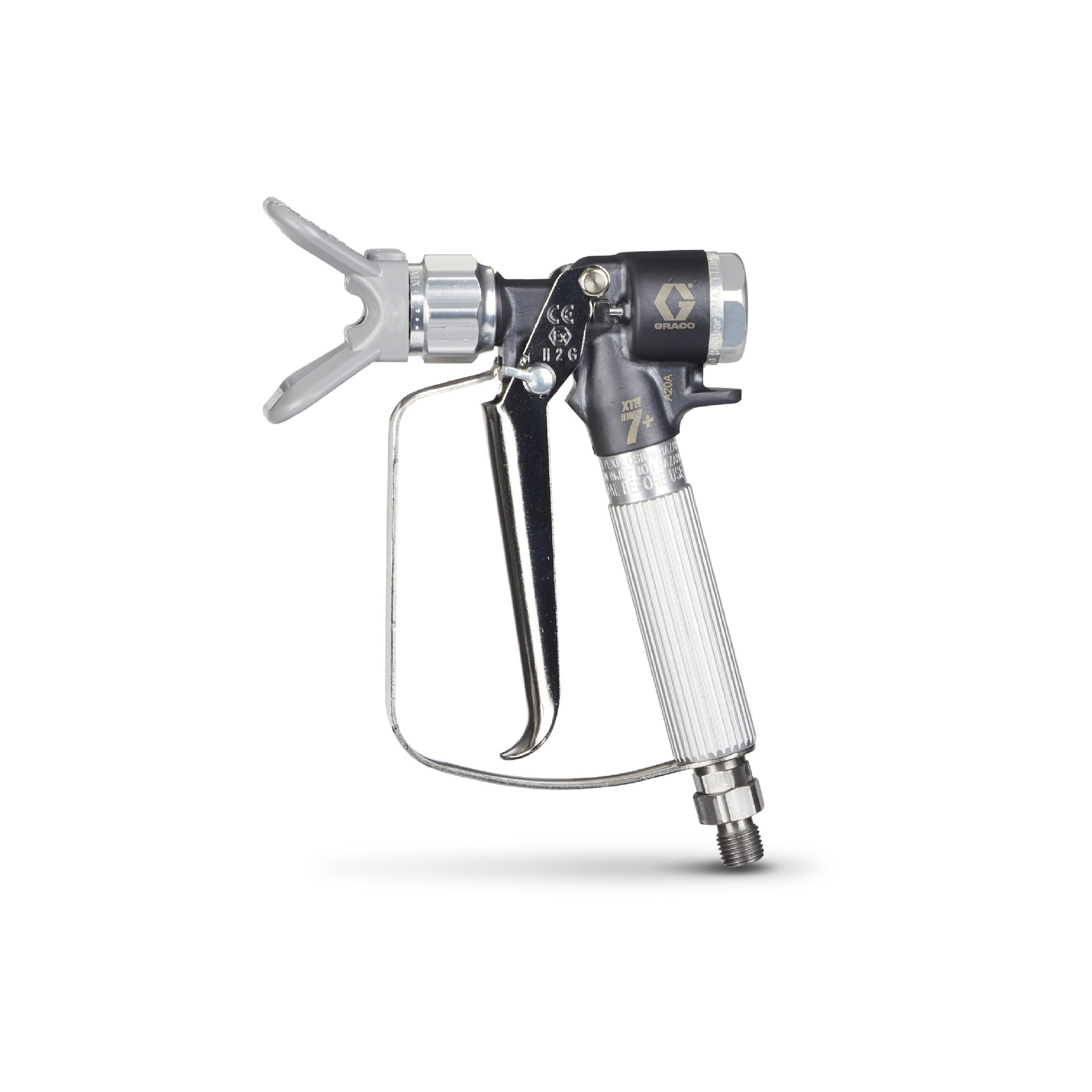

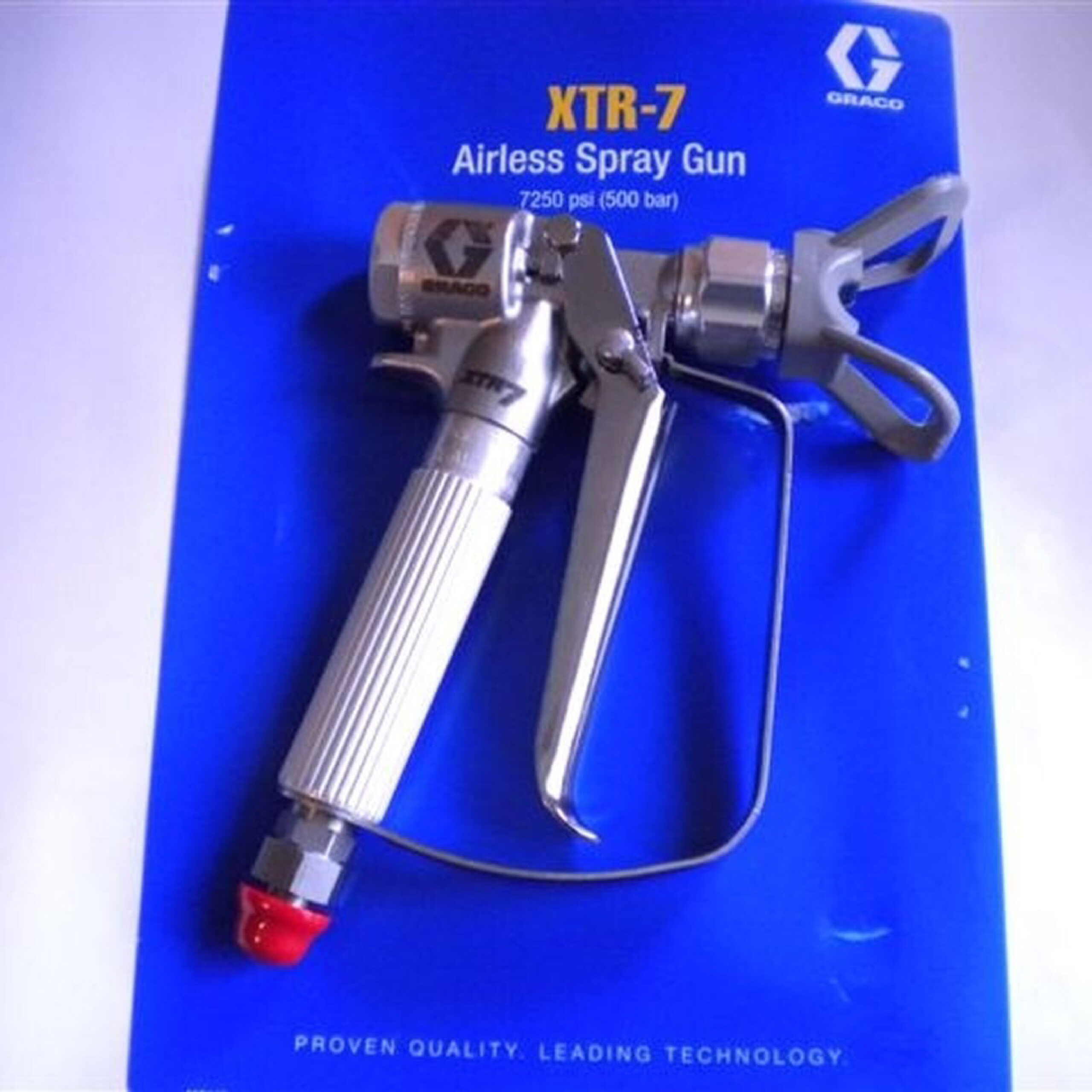

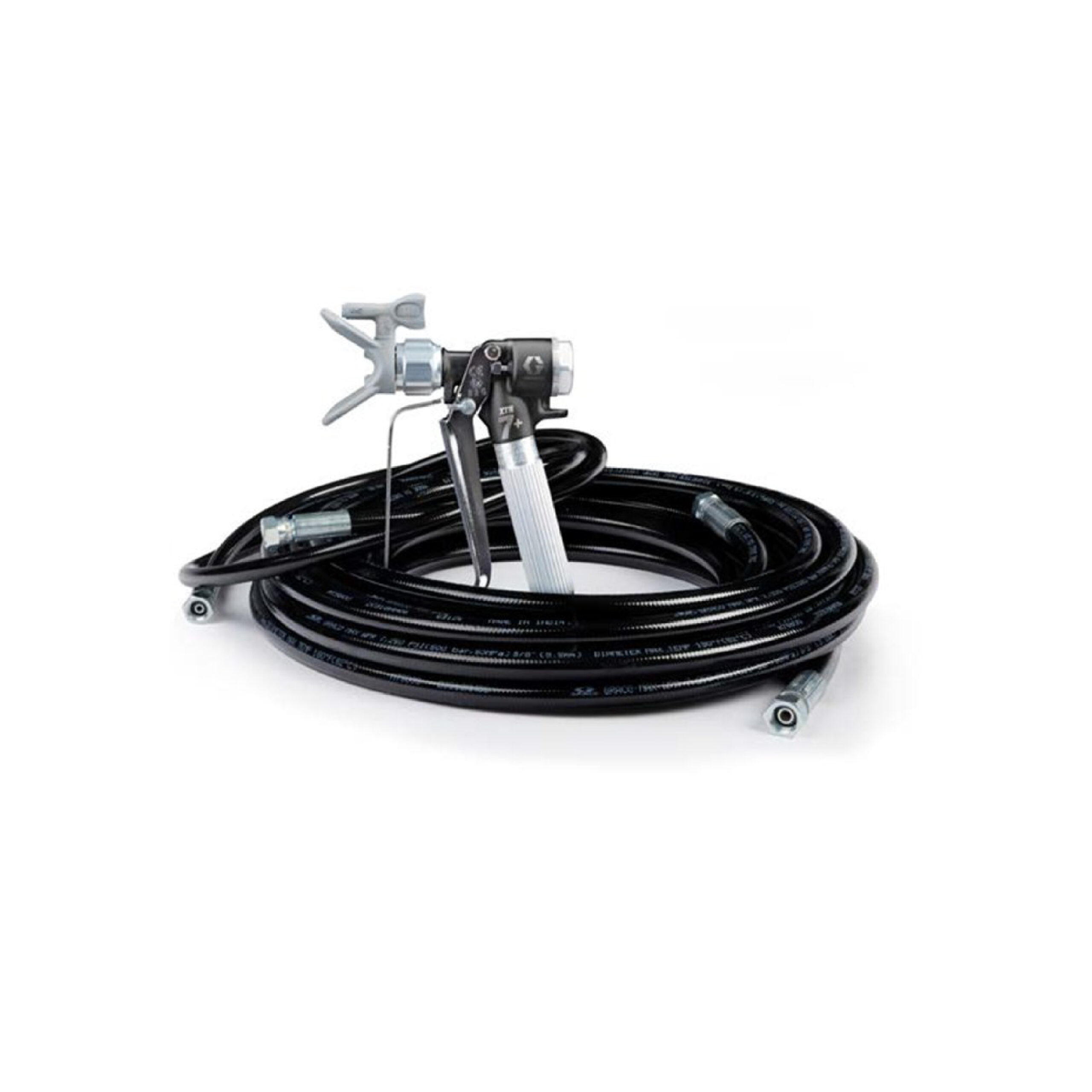

Graco XTR7 Spray Gun

Rugged, ergonomic design handles the toughest protective coatings

• Oval-insulated or round handle

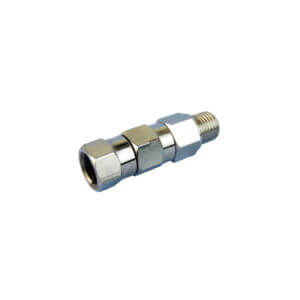

• EasyGlide swivel for better hose and gun movement
• Easy Out gun filter which reduces tip plugging

Call for price

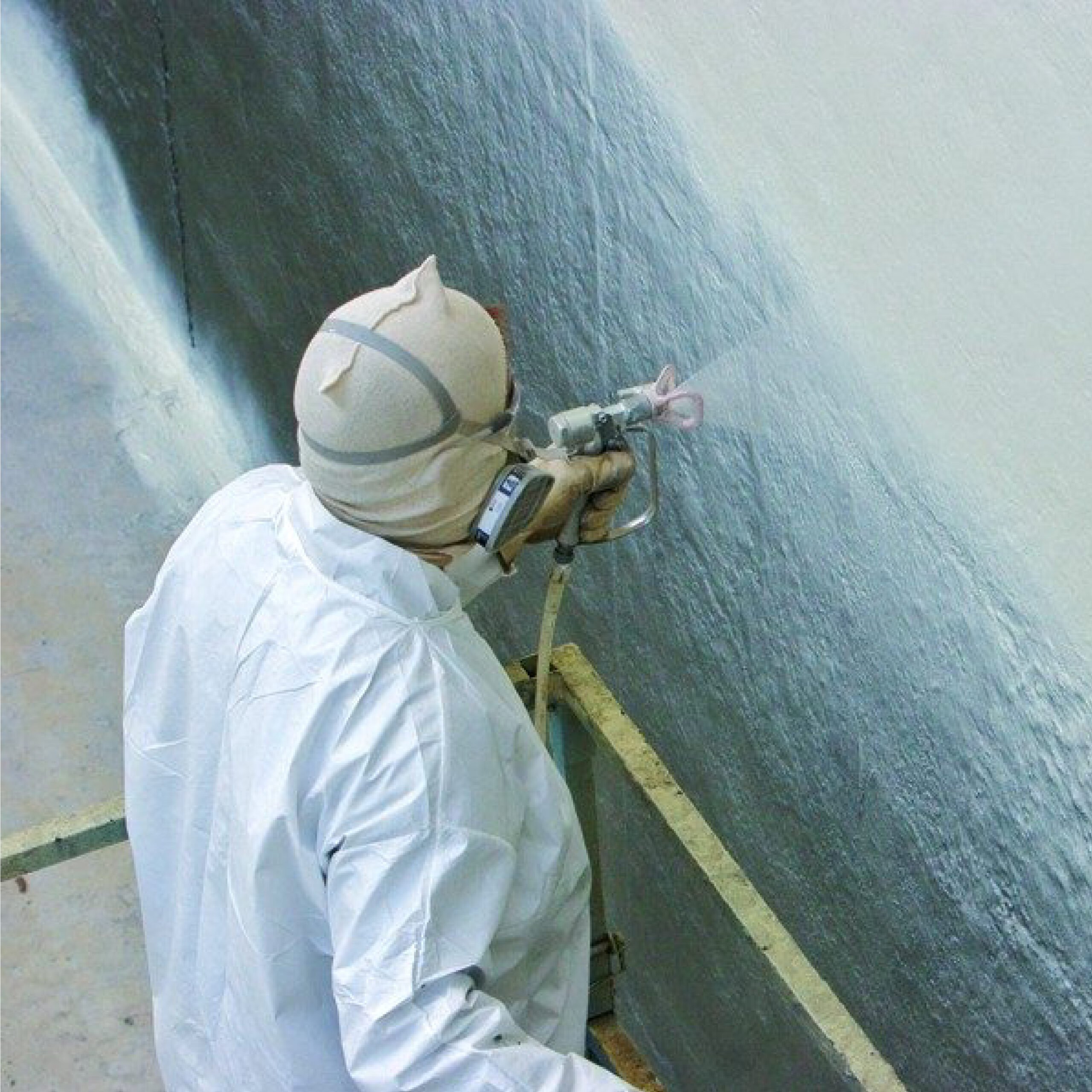

The ideal choice for hard-to-spray industrial coatings

  • Variety of handle and trigger options for maximum spraying comfort
  • Compact design allows for easy access to tight places
  • High-quality materials and construction
  • XTR-5 maximum fluid pressure: 5000 psi (345 bar, 34.5 MPa)
  • XTR-7 maximum fluid pressure: 7250 psi (500 bar, 50 MPa)

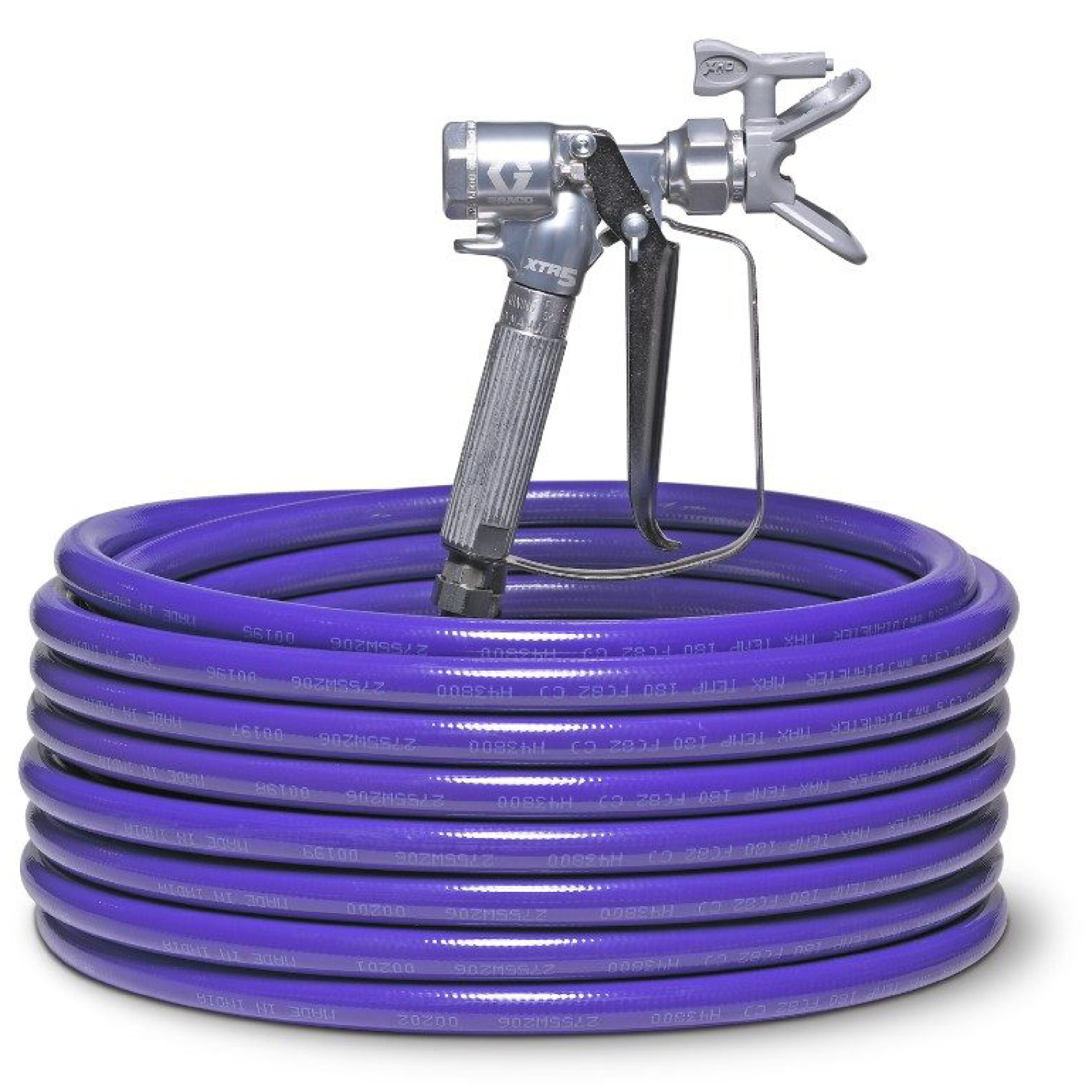

XTR5 and XTR7 Airless Spray Gun
Maximum working pressure:
35 MPa, 345 bar
XTR 7 7250 psi
50 MPa, 500 bar
Fluid orifice
2.3 mm
Fluid inlet
1/4 npsm (m)
Max. fluid temperature
Sound pressure
84.3 dB(A)*
Sound power
95.7 dB(A)*
Wetted parts
aluminium, stainless steel, acetal, polyethylene, nylon, polypropylene, carbide, polyurethane, solvent-resistant o-rings.
*Results are maximum readings taken at 6000 psi (41 MPa, 414 bar), with HD519 tip, using water. Sound power level was tested to ISO 9614-2.
